Black Rubber Line Set
Home> Products> Black Rubber Line Set
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts

20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts

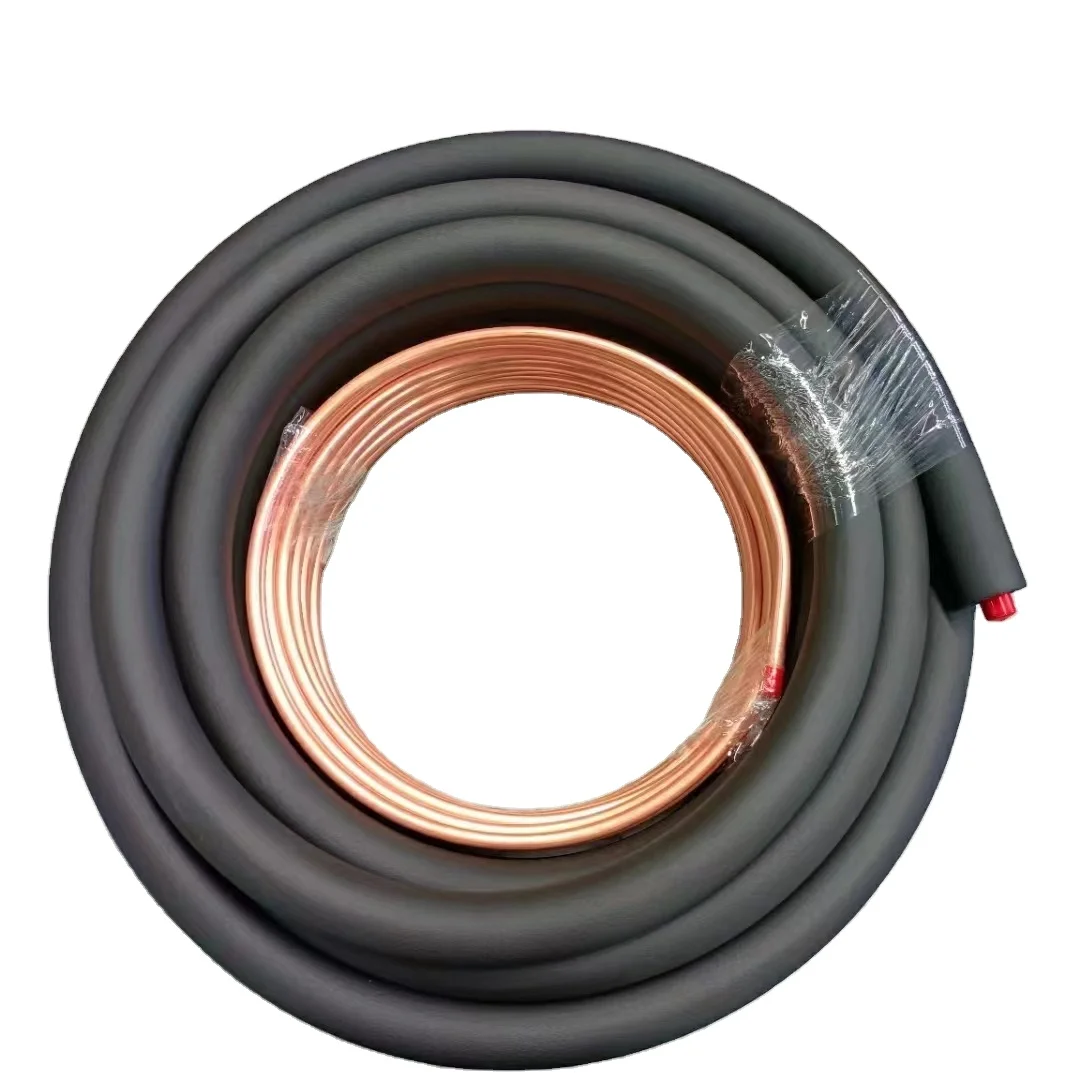

It has a 20m-long air conditioning unit with a 3/8-5/8 copper double coils wrapped with black rubber. The thermal insulation performance of black rubber is excellent, and it can reduce energy loss greatly, improve the efficiency of air conditioning operation, waterproof, anti-corrosion, protect copper pipe, and so on. Solid copper materials are used to guarantee the stable operation of refrigerants, and satisfy the requirements of air conditioning installation, maintenance and other construction.

Get a Quote

Introduction

Products Description
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts details
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts
This 20m copper pair coil with black rubber insulation is produced by our own factory, we have focused on supplying high quality 20m copper pair coil for all our customers since 2012. And these 20m copper pair coil are mainly exported to US, Australia, New Zealand, and Euro-market. We support customized copper thickness, spare parts for installation, special packages with your logos or something else you want are available.

Standard specifications of 20m copper pair coil are available as below for your reference:
Specification
Copper pipe size (mm)
Insulation thickness (mm)
Length (ft)
1/4 - 3/8
6.35 × 0.8 + 9.52 × 0.8
1/2" - 1" (13 mm- 25 mm)
10ft - 164ft
1/4 - 1/2
6.35 × 0.8 + 12.70 × 0.8
1/2" - 1" (13 mm- 25 mm)
10ft - 164ft
1/4 - 5/8
6.35 × 0.8 + 15.88 × 0.9
1/2" - 1" (13 mm- 25 mm)
10ft - 164ft
3/8 - 5/8
9.52 × 0.8 + 15.88 × 0.9
1/2" - 1" (13 mm- 25 mm)
10ft - 164ft
3/8 - 3/4
9.52 × 0.8 + 19.05 × 1.0
1/2" - 1" (13 mm- 25 mm)
10ft - 164ft
1/2 - 3/4
12.70 × 0.8 + 19.05 × 1.0
1/2" - 1" (13 mm- 25 mm)
10ft - 164ft
1 - 1/8
28.6 × 1.3
1/2" - 1" (13 mm- 25 mm)
10ft - 164ft
PS: All the copper tubes' diameter and wall thickness can be customized and changed according to customers' requirements.
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts supplier
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts manufacture
Factory Workshop
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts details
We are focused on manufacturing, developing and exporting of all sizes of 20m copper pair coil for air conditioning since 2012. Our factory also produces white and black PE fire rated 20m copper pair coil mostly for Australia and Europe market. And it meets all standards of Australia market and Europe market, we use copper 99.99% and high quality insulation material. Sincerely hope to establish business with you all.
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts details
Packaging & Shipping

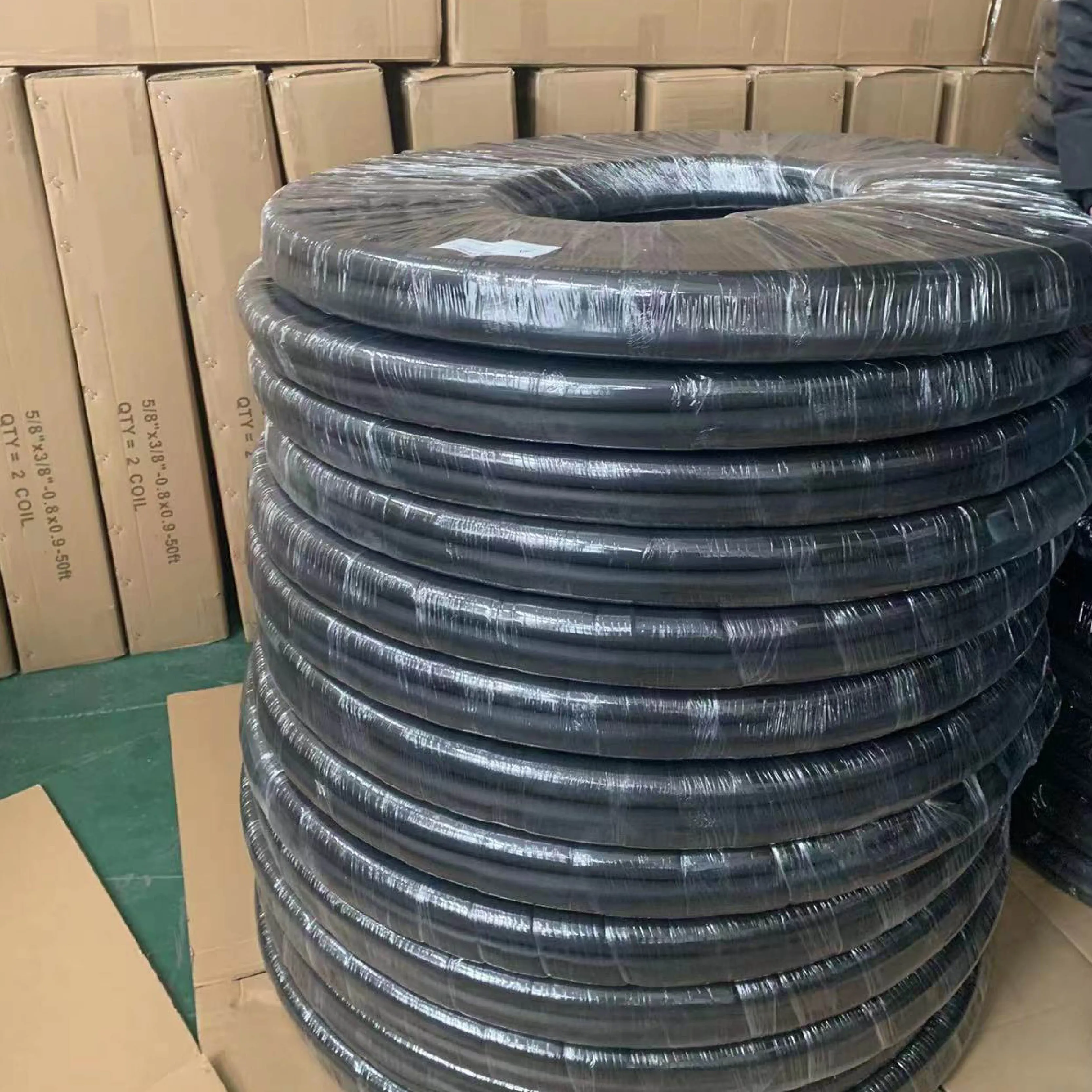

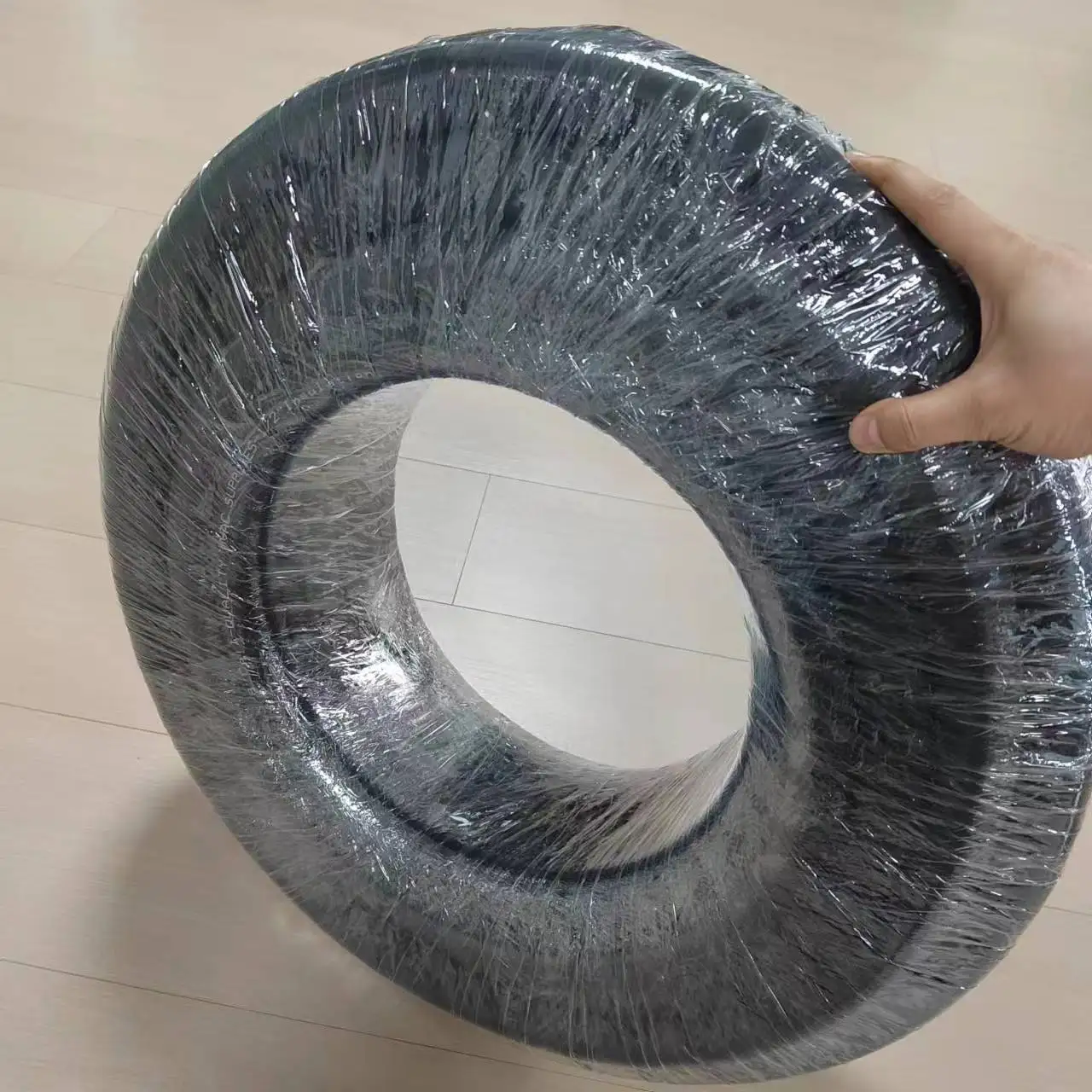

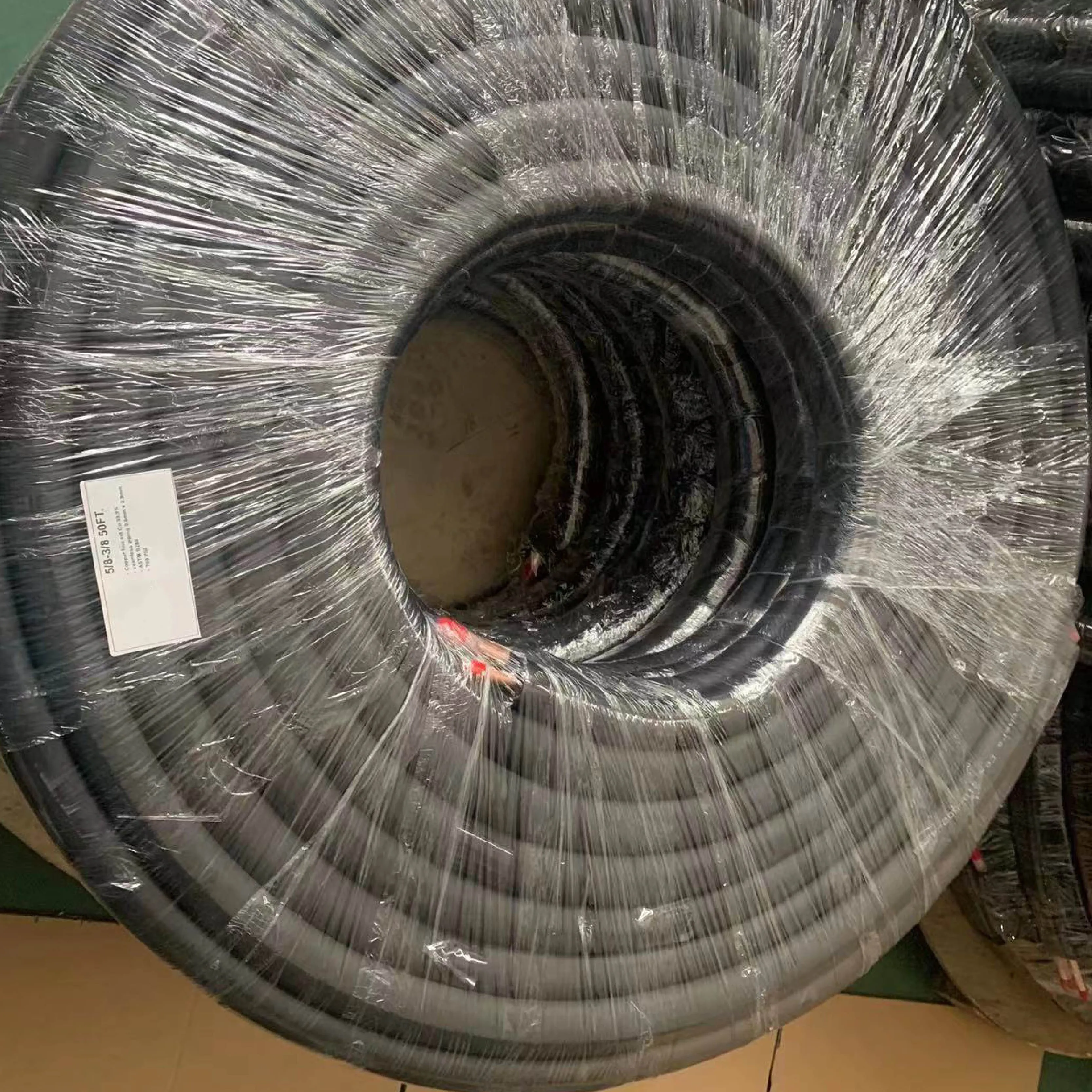

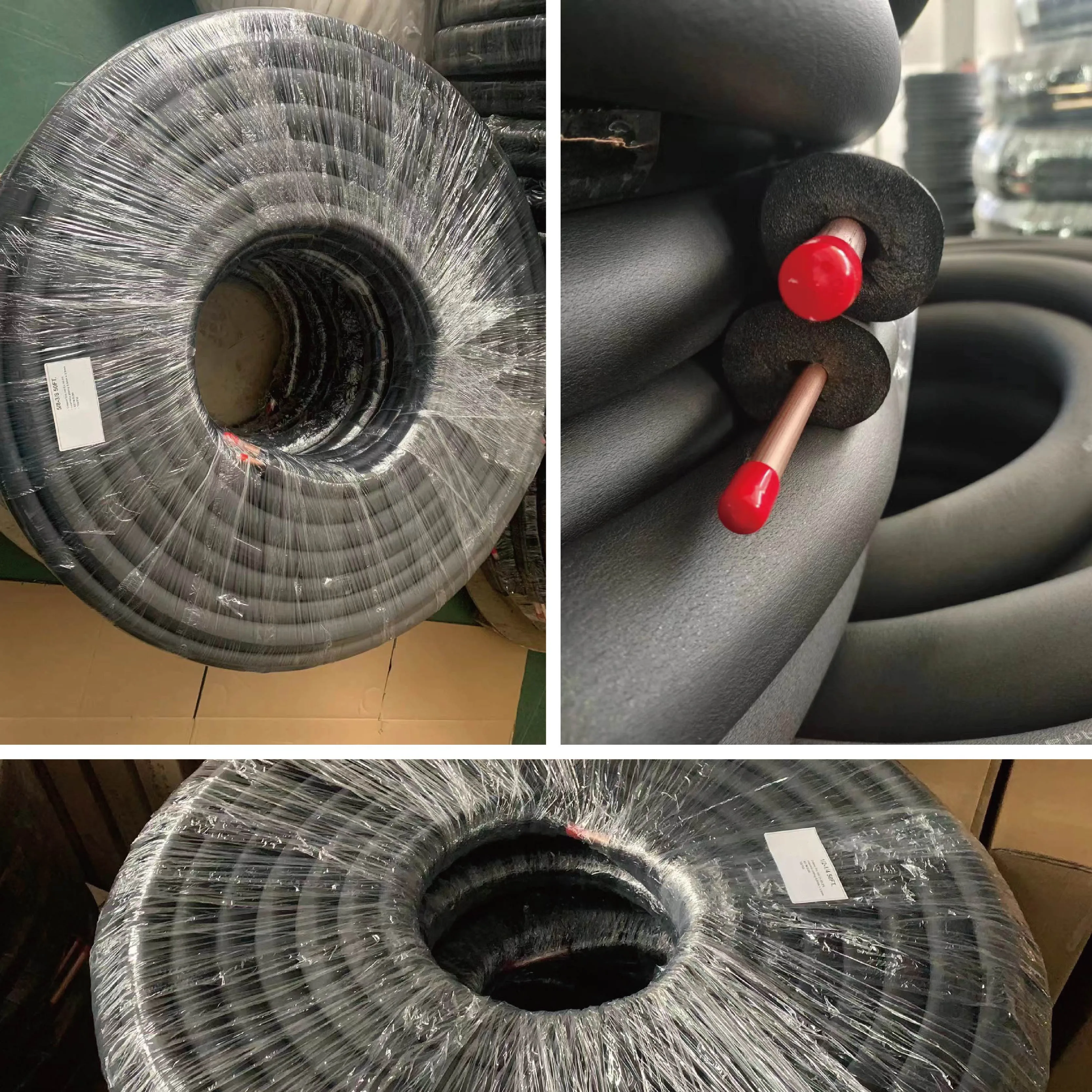

About packages for 20m copper pair coil, we normally use cartons for it, but we also support other packing ways, such as pallets. Customized information on the cartons is available, such as printing your logos or your company names on it, that would be ok.
About the shipping for 20m copper pair coil, we support different kinds of shipping methods, such as shipping by railway transport, by sea, by air or multimodal transport, FOB, CNF, CIF, DDP is ok.
20m Black Rubber Copper Pair Coil 3/8-5/8 Inch Size for Air Conditioner Parts supplier
FAQ
Q1: Are you manufacturer?
A1: We are professional manufacturer in China, we export our products all around the world since 2012.

Q2: Can we get samples for quality testing ?
A2: Of course, we can support free samples for you as your requirement.

Q3: What's your MOQ?
A3: 200 rolls.

Q4: Can we use our own logos on the products?
A4: Yes, we support OEM packages with your own logos or designs.

Q5: How long will be the production if we place a order to your factory?
A5: The production will be ok within 15-30 days after the order is confirmed.
